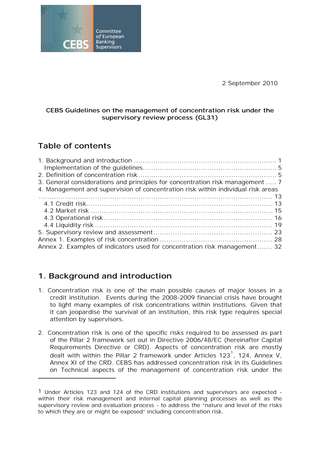

Revised Guidelines on the management of concentration risk under the supervisory review process

2 September 2010
CEBS Guidelines on the management of concentration risk under the supervisory review process (GL31)
Table of contents
1. Background and introduction .................................................................. 1
Implementation of the guidelines.............................................................. 5
2. Definition of concentration risk................................................................ 5
3. General considerations and principles for concentration risk management ..... 7
4. Management and supervision of concentration risk within individual risk areas
............................................................................................................ 13
4.1 Credit risk...................................................................................... 13
4.2 Market risk .................................................................................... 15
4.3 Operational risk.............................................................................. 16
4.4 Liquidity risk .................................................................................. 19
5. Supervisory review and assessment....................................................... 23
Annex 1. Examples of risk concentration .................................................... 28
Annex 2. Examples of indicators used for concentration risk management....... 32
1. Background and introduction
1. Concentration risk is one of the main possible causes of major losses in a
credit institution. Events during the 2008-2009 financial crisis have brought to light many examples of risk concentrations within institutions. Given that it can jeopardise the survival of an institution, this risk type requires special attention by supervisors.
2. Concentration risk is one of the specific risks required to be assessed as part
of the Pillar 2 framework set out in Directive 2006/48/EC (hereinafter Capital Requirements Directive or CRD). Aspects of concentration risk are mostly dealt with within the Pillar 2 framework under Articles 1231 , 124, Annex V,
Annex XI of the CRD. CEBS has addressed concentration risk in its Guidelines
on Technical aspects of the management of concentration risk under the

1 Under Articles 123 and 124 of the CRD institutions and supervisors are expected - within their risk management and internal capital planning processes as well as the supervisory review and evaluation process - to address the “nature and level of the risks to which they are or might be exposed” including concentration risk.

supervisory review process, published on 17 December 20062 which are being replaced by the current revision.
3. These Guidelines address all aspects of concentration risk. It should be noted
that in addition to the specific provisions on concentration risk included in the CRD, institutions will continue to be subject to the rules on monitoring and control of large exposures focusing on concentration of exposures to a single client or group of connected clients provided for in Articles 106 to 118, and in CEBS Guidelines and standards issued on that subject.
4. It should be also noted that in the Basel Capital Framework (and the CRD),
concentration risk is not fully addressed in the context of Pillar 1. For credit risk it is assumed that IRB portfolios are perfectly diversified3 . Any resultant underestimation of risk should be corrected by addressing the concentration risk and allocating capital, where necessary, through the framework of Pillar 2, by which supervisors expect institutions to hold enough capital for all of their risks, including concentration risk. Any additional capital would be allocated after steps have been taken to mitigate concentration risk, and in relation to the unmitigated part of that risk.
5. Concentration risk has been traditionally analysed in relation to credit
activities. However, concentration risk refers not only to risk related to credit granted to individual or interrelated borrowers but to any other significant interrelated asset or liability exposures which, in cases of distress in some markets/ sectors/ countries or areas of activity, may threaten the soundness of an institution.
6. In order to identify the concentration risk within an institution, it is not
sufficient only to analyse within a risk type (intra-risk analysis), analysis of concentration risk across risk types (inter-risk analysis) is also necessary. This distinction is somewhat artificial since the end-result of intra- and interrisk concentration analysis is the same, identification of exposures with the potential to produce losses large enough to threaten the financial institution's health or ability to maintain its core operations, or to produce a material change in its risk profile4 .
7. Given the two-fold nature of the concentration risk (intra- and inter-risk),
CEBS recognises that, in many instances, some or all aspects of intra-risk concentrations may be captured by the existing risk management models and practices. In such cases, the principles of these guidelines should be followed to the extent that that it can be demonstrated how effectively and adequately intra-risk concentrations are captured in the existing risk 2 See http://www.c-ebs.org/getdoc/fb7a0a06-c026-48fc-8bb7-05100f8fa1c9/Technicalaspects-of-the-management-of-concentrati.aspx 3 See also “Studies on credit risk concentration: an overview of the issues and a synopsis of the results from the Research Task Force project", BCBS Working Papers No 15, November 2006, http://www.bis.org/publ/bcbs_wp15.pdf 4 See Joint Forum Report, "Cross-sectoral review of group-wide identification and management of risk concentrations" (April 2008), http://www.bis.org/publ/joint19.pdf for a reference definition of risk concentrations.

management framework set up for a particular risk area (“silo”). However, CEBS draws the attention of the reader to interactions between various risk factors and inter-risk concentrations, which might not be sufficiently captured by the existing approaches to risk (and concentration risk) management.
8. The guidelines promote a holistic approach to concentration risk management
which expects institutions to identify and assess all risk concentrations as a single risk event may result in losses or negative impacts in more than one risk category. The Guidelines also aim to promote sound risk management practices in general, and continue the work CEBS started with publication of its High-level principles for risk management5.
9. Concentration risk may arise from connected factors which are not readily
apparent and identifiable without the implementation of comprehensive processes to identify, manage, monitor and report concentration risk. It is essential to prevent concentrations from accumulating without these being properly identified and controlled by institutions, as well as by supervisors.
10. CEBS understands the potential for diversification benefits in institutions and
the relationship with concentration risk on both an intra- and inter-risk basis. The quantification of concentration risk along with diversification benefits may be generated from the same or similar framework(s) or methodology(ies). The focus of the current guidelines remains solely on concentration risk, whereas CEBS has addressed the issue of diversification in the separate report on the supervisory approaches to diversification benefits arising from economic capital models6.
11. From a practical perspective CEBS believes that improvements introduced to
the institutions’ risk management and measurement frameworks aimed at better identification and mitigation of concentration risk as a result of the implementation of these guidelines will also contribute to the evolution of measurement and modelling of the effects of diversification.
12. CEBS acknowledges that, in the assessment of the concentration risk of an
institution, (both in the context of a cross-border or domestic banking group) supervisors will pay attention to the institution’s business model and strategy, including strategy, which could result in certain entities being concentrated in certain areas, products or markets as a result of the groupwide strategy. Such cases will be closely examined by the respective supervisors and be addressed in the context of ICAAP-SREP dialogue between institutions and their supervisors, also taking place in the college framework, where applicable. 5 See: http://www.c-ebs.org/documents/Publications/Standards---Guidelines/2010/Riskmanagement/HighLevelprinciplesonriskmanagement.aspx 6 CEBS’s Report on the supervisory approaches to diversification benefits arising from economic capital models and CEBS’s stance regarding the recognition of diversification benefits: http://www.c-ebs.org/documents/Publications/OtherPublications/Others/2010/Diversification.aspx

13.These guidelines are closely related to other CEBS guidelines, and they should be read together with, primarily: (i) Guidelines on the Application of the Supervisory Review Process under Pillar 2 (GL03)7; High-level principles for risk management8; and (iii) Guidelines on the implementation of the revised large exposures regime9. Given the importance of stress testing in the identification of concentration, especially inter-risk concentration, CEBS Guidelines on stress testing10 provide a helpful insight into the setting up of stress testing programmes. 14.The guidelines are structured into four major sections. The first provides the definition of concentration risk and its two-fold focus on intra- and inter-risk concentrations (Section 2). Section 3 deals with general principles for management of concentration risk, Section 4 addresses aspects of concentration risk management specific to particular risk areas (credit, market, operational and liquidity risks11) and Section 5 provides underpinnings for the supervisory review and evaluation. The Guidelines are also supplemented by two annexes with examples of concentration risk (Annex 1) and examples of indicators for concentration risk management (Annex 2).
15. In these guidelines CEBS discusses both qualitative and quantitative aspects
of concentration risk management while noting the principle of proportionality, meaning that smaller and simpler institutions may focus more on the qualitative aspects, especially when dealing with inter-risk concentrations, whilst more complex institutions will be expected to adequately capture both intra- and inter-risk concentration in their internal measurement models. 16.The principle of proportionality applies to all aspects of these guidelines, including the methodologies used for identification, measurement, monitoring, and management of concentration risk. Equally, the frequency and intensity of supervisory review and evaluation should have regard to the size, systemic importance, nature, scale and complexity of the activities of the institution concerned, bearing in mind that, quite often, for smaller and less complex institutions concentration risk is mainly related only to credit 7 See http://www.c-ebs.org/getdoc/00ec6db3-bb41-467c-acb9- 8e271f617675/GL03.aspx 8 See: http://www.c-ebs.org/documents/Publications/Standards---Guidelines/2010/Riskmanagement/HighLevelprinciplesonriskmanagement.aspx 9 See http://www.c-ebs.org/documents/Publications/Standards--- Guidelines/2009/Large-exposures_all/Guidelines-on-Large-exposures_connected-clientsan.aspx 10 See http://www.c-ebs.org/documents/Publications/Standards--- Guidelines/2010/Stress-testing-guidelines/ST_Guidelines.aspx 11 In the implementation of principles contained in this section, national supervisory authorities and institutions should be aware of ongoing discussions regarding the proposals for changes to the liquidity regime to be introduced in the CRD IV. CEBS is closely monitoring the regulatory developments, has participated in the public consultation of the proposals for the CRD IV, and will amend, if necessary, the principles put forward here, once the legislative proposals are finalised.

risk. As a result of their business models some institutions may be excessively concentrated in certain business lines, products or geographies – no matter that they may often be specialists and possess the best knowledge of their markets or product niches. These institutions should be especially careful and prudent with regard to concentration risk as they may be more sensitive to it and potentially could be more affected by problems emerging in a specific market or product. In any event, supervisors should take a balanced view on the level of concentration and business model of an institution. 17.The principle of proportionality is also of relevance to cross-border groups, and addressing the concentration risk from the group and solo entity perspective. According to the principle of proportionality supervisors recognise that certain concentration may arise at the level of a business line or individual legal entity as a result of the group diversification policy. Such areas will be closely investigated and discussed by the respective colleges of supervisors in the context of the joint risk assessment process. Implementation of the guidelines 18.CEBS will expect its members to apply the present guidelines by 31 December 2010, meaning that by this date the guidelines should be transposed into national supervisory guidelines and reflected in the national supervisory manuals/handbooks, where applicable, and implemented in supervisory practices.
19. CEBS also expects institutions to make progress in implementing the
guidelines following the transposition and recommendations/requirements of national supervisory authorities, and to put in place implementation programmes aimed at ensuring timely/ compliance with the new guidelines (e.g. gap analysis, implementation plans, etc.). 20.To ensure the harmonisation of practices across Member States, CEBS will conduct an implementation study one year after the implementation date. The implementation study will be focused on the transposition of the guidelines into national regulations and on their implementation in supervisory practices as well as on progress made by institutions.
2. Definition of concentration risk
21.For the purpose of these Guidelines the definition of concentration risk is similar to the Joint Forum’s working definition of risk concentrations, i.e. exposure(s) that may arise within or across different risk categories throughout an institution with the potential to produce: (i) losses large enough to threaten the institution’s health or ability to maintain its core operations; or (ii) a material change in an institution’s risk profile. In these

guidelines the following terms are used to describe two relationships between risk concentrations12 :

Intra-risk concentration refers to risk concentrations that may arise
from interactions between different risk exposures within a single risk category;
Inter-risk concentration refers to risk concentrations that may arise
from interactions between different risk exposures across different risk categories. The interactions between the different risk exposures may stem from a common underlying risk driver or from interacting risk drivers. Inter-risk concentrations may also arise where exposures to one entity or closely related groups of exposures (for example industry or geographic area) are not booked in the same place (e.g. exposures in the banking book and trading book). Where risks have a common risk driver that causes them to crystallise simultaneously or successively, correlations between risk exposures that were assumed to be low may materialise as high during a stress period. 22.Concentration risk can have an impact on institutions’ capital, liquidity and earnings. These three aspects do not exist in isolation, and institutions’ risk management frameworks should address them adequately. 23.In addition to concentrations within and across different risk types, an institution may be concentrated in its earnings structure. For example, an institution highly dependent for its profits on a single business sector and/or a single geographic area may be affected to a greater extent by sectoral or regional business cycles. Different sources of income may not be independent of each other. These interdependencies should be taken into account when assessing concentration risk. 24.However while business concentration may increase vulnerability with regard to specific cycles, business and geographic specialisation may still enhance the performance of institutions, since focusing on specific sectors, products or regions may generate specialised expertise. A balanced view thus has to be taken when assessing business concentration risk. 12 See also “Cross-sectoral review of group-wide identification and management of risk concentrations” by the Joint Forum (April 2008), http://www.bis.org/publ/joint19.pdf

General considerations and principles for
concentration risk management
Guideline 1. The general risk management framework of an institution should clearly address concentration risk and its management. 25.The requirements for general risk management frameworks are elaborated in the CEBS High-Level principles for risk management13 and the internal governance section of the Guidelines on the Application of the Supervisory Review Process under Pillar 214 . 26.In particular, institutions are expected to adequately address concentration risk in their governance and risk management frameworks, to assign clear responsibilities, and to develop policies and procedures for the identification, measurement, management, monitoring and reporting of concentration risk. 27.The management body should understand and review how concentration risk derives from the overall business model of the institution. This should result from the existence of appropriate business strategies and risk management policies. 28.Institutions should derive a practical definition of what constitutes a material concentration in line with their risk tolerance. Moreover, institutions should determine the level of concentration risk arising from the different exposures they are willing to accept (i. e. determine their concentration risk tolerance), with due regard to (inter-alia) the institution’s business model, size and geographic activity. 29.The concentration risk policy should be adequately documented explaining how intra- and inter-risk concentrations are addressed at both group and solo levels. The concentration risk management framework and underlying policy(ies) should be embedded in the institution’s risk management culture at all levels of the business. It should be subject to regular review, taking into account changes in risk appetite and in the business environment. 30.Any exceptions from the policies and procedures should be properly documented and reported to the appropriate management level. Institutions 13 See: http://www.c-ebs.org/documents/Publications/Standards--- Guidelines/2010/Risk-management/HighLevelprinciplesonriskmanagement.aspx 14 See CEBS Guidelines on the Application of the supervisory review process under Pillar 2 (GL03), Chapter 2.1 (see http://www.c-ebs.org/getdoc/00ec6db3-bb41-467c-acb9- 8e271f617675/GL03.aspx)

are expected to have procedures for independent monitoring (from the business, such as the risk function) of any breaches of policies and procedures, including the monitoring and reporting of breaches of limits. Any breaches of policies and procedures, including breaches of limits, should be subject to appropriate escalation procedures and management actions. Guideline 2. In order to adequately manage concentration risk, institutions should have an integrated approach for looking at all aspects of concentration risk within and across risk categories (intra- and interrisk concentration).
31. Intra-risk concentrations should be adequately captured either as a separate
discipline, or fully embedded in the risk management including identification, measurement, monitoring, reporting and governance of the underlying risk areas. 32.Inter-risk concentrations stemming from interdependencies between risk types may not be fully considered when risks that are identified and measured on a stand-alone basis (“silo” approach) are combined (added up) in a simple way, e.g. by adding up Value-at-Risk figures. In this case, interrisk concentrations via single factors driving the risks of different business lines may not be captured. Institutions should have frameworks for identifying such factors and how they may affect the various risk types. Institutions should also consider how risk mitigation techniques may play out under stressed market conditions. 33.In the integrated approach to concentration risk management institutions should also pay due attention to feedback effects, i.e. indirect effects on an institution’s exposure caused by changes in the economic environment. For example, an additional loss may arise from the inability to liquidate some assets following a sharp decrease in the value of those assets; in such circumstances inter-risk concentrations may become apparent. Guideline 3. Institutions should have a framework for the identification of intra- and inter-risk concentrations. 34.Risk drivers which could be a source of concentration risk should be identified. Furthermore, the risk concentration identification framework should be comprehensive enough to ensure that all risk concentrations which are significant to the institution are covered, including on– and off- balance sheet positions and committed and uncommitted exposures, and extending across risk types, business lines and entities. It follows that an institution should have adequate data management systems to enable it to identify concentrations arising from different (types of) exposures. Institutions should identify elements of concentration risk which have not been adequately addressed with the help of established models. 35.As an institution does not operate in isolation, it should consider economic developments that influence the financial markets and their actors and vice versa. An important element to consider is system-wide interactions and feedback effects and how such effects may impact the institution. The

analysis of these potential interactions and feedback effects should be thorough enough to enable the institution to implement a forward-looking approach to its concentration risk management. 36.An institution should constantly monitor the evolving interplay between the markets and the economy to facilitate the identification and understanding of potential concentration risks (at both group and solo levels) and the underlying drivers of these risks. In its monitoring the institution should go further than first-order observations, as mere observation of the changes in market and economic variables will not give the institution the required insights in order to implement a forward-looking approach to its concentration risk management.
37. Stress testing in the form of both sensitivity analysis and more complex
scenario stress testing is a key tool in the identification of concentration risk. The analysis should be performed on an institution-wide basis and transcend business unit (or entity) or risk type focus on concentrations, to which it can be a useful complement15. In addition, stress tests may allow institutions to identify interdependencies between exposures which may become apparent only in stressed conditions, including complex chain reaction type events that involve the successive occurrence of contingent risks (for example liquidity), and second, third etc order events. 38.Use of stress testing as a way of identifying concentration risk does not necessarily mean that stress tests should be conducted solely for the purposes of concentration risk management. Although some specific sensitivity analyses targeted on behaviour of known concentrations in a portfolio or single risk type level may improve institutions’ knowledge about concentration risk, holistic stress tests looking at the risks being faced by the organisation as a whole (firm-wide stress tests) may be especially useful in the identification of concentration risk. 39.Institutions should identify concentration risks when planning to enter into new activities, in particular those resulting from new products and markets. Guideline 4. Institutions should have a framework for the measurement of intra- and inter-risk concentrations. Such measurement should adequately capture the interdependencies between exposures. 40.The measurement framework should enable the institution to evaluate and quantify the impact of risk concentrations on its earnings/profitability, solvency, liquidity position and compliance with regulatory requirements in a reliable and timely manner. Frequency of measurements should be proportionate to the scale and complexity of the institution’s operations. The measurement framework should be regularly reviewed and reflect changes in 15 More details on stress testing, including concentration risk stress testing is available from the revised CEBS Guidelines on stress testing, see http://www.cebs.org/documents/Publications/Standards---Guidelines/2010/Stress-testingguidelines/ST_Guidelines.aspx.

the external environment as well as possible changes in the risk profile of the institution, taking into account its current and projected activities. 41.Multiple methods or measures may be required to provide an adequate view of the different dimensions of the risk exposure. Scenario stress testing may be a particularly appropriate tool for developing forward looking approaches by introducing views on potential financial market and economic evolutions into the institution’s risk measurement methods and to translate these views in terms of risks. If performed outside the standard aggregation methods, the scenario stress testing exercises could be an appropriate tool for assessing the standard methods used. 42.The management body should be aware of the major limitations and underlying assumptions of the measurement framework. The risk control function should take into account adequately all limitations and assumptions of models and their calibration, particularly via the application of stress tests. Guideline 5. Institutions should have adequate arrangements in place for actively controlling, monitoring and mitigating concentration risk. Institutions should use internal limits, thresholds or similar concepts, as appropriate. 43.Active management of risk exposures is required to mitigate the potential emergence of undesired concentrated exposures within portfolios. Note though that this active management may lead to subsequent risks that may be difficult to deal with (e.g. asset liquidity risk). Also constant assessment and adjustment of business and strategic goals is required to avoid the buildup of undesired long-term risk concentrations. 44.An institution should set top-down and group-wide concentration risk limit structures (including appropriate sub-limits across business units or entities and across risk types) for exposures to counterparties or groups of related counterparties, sectors or industries, as well as exposures to specific products or markets. 45.The limit structures and levels should reflect the institution’s risk tolerance and consider all relevant interdependencies within and between risk factors. The limit structures should cover both on- and off- balance sheet positions and the structure of assets and liabilities at consolidated and solo levels. The limit structures should be appropriately documented and communicated to all relevant levels of the organisation. 46.Institutions should carry out regular analyses of their portfolios and exposures, including estimates of their trends, and should take account of the results of these analyses in setting and verifying the adequacy of the processes and limits, thresholds or similar concepts for concentration risk management. Examples of elements of such analysis, although not exhaustive are:

undertaking a more detailed review of the risk environment in particular
sector(s);
reviewing with greater intensity the economic performance of existing
borrowers;
reviewing approval levels for business;
reviewing risk mitigation techniques, their value and their legal
enforceability;
reviewing outsourced activities and contracts signed with third parties
(vendors);
reviewing the funding strategy, so as to ensure the maintenance of an
effective diversification in the sources and tenor of funding; and
reviewing the business strategy.
47.Where issues of concern are identified, institutions should take appropriate mitigating action. Possible actions could include, for example:
reducing limits or thresholds on risk concentrations;
adjusting the business strategy to address undue concentrations;
diversifying asset allocation or funding;
adapting the funding structure;
buying protection from other parties (e. g. credit derivatives, collateral,
guarantees, sub-participation);
selling certain assets; and
changing outsourcing arrangements.
48.With regard to concentration funding risk, limits may include:
limits related to funding from inter-bank markets;
limits related to maximum or minimum average maturities..

In addition, other limits restricting concentrations of liquidity may be
considered, for example:

limits concerning maturity mismatches, especially limits concerning
cumulated liquidity gaps; and
limits referring to off-balance sheet positions.

Other useful instruments are indicators and triggers (internal liquidity ratios)
which, as with limits, are targeted at certain thresholds, but usually are established at more conservative levels than limits. They are introduced to warn against potential difficulties and should result in the taking of preventative actions to avoid exceeding limits.

51.Mitigation techniques used by institutions should be adequate, manageable and fully understood by the relevant staff. The institution should ensure that when mitigating concentration risk it does not overly rely on specific mitigation instruments, thereby substituting one kind of concentration for another, taking into account the character and quality of the mitigating instruments.
52. Institutions should be careful not to diversify into business activities or
products where it may lack the necessary expertise, for which their structure or their business model is not appropriate, or which are not in line with the institution’s risk appetite. The risk mitigation strategy can lead to a preference for some forms of concentration over diversification, for example concentrating in good-quality assets compared to diversifying (for the sake of diversification) into lower quality assets, thus increasing the overall risk profile. It should be acknowledged that a reduction of concentration risk should not lead to an increase in overall risk profile of underlying exposures (portfolio), i.e. the quality of diversified exposures should be of the same or higher quality as the original exposures. 53.Institutions should have adequate arrangements in place for reporting concentration risk. These arrangements should ensure the timely, accurate and comprehensive provision of appropriate information to management and the management body about levels of concentration risk. 54.An institution should have in place a reliable, timely and comprehensive monitoring and reporting framework for risk concentrations which will facilitate efficient decision-making. This could be part of an existing monitoring and reporting framework. The management reports should provide qualitative and, where appropriate, quantitative information on intrarisk and inter-risk concentrations as well as on material risk drivers and mitigating actions taken. The reports should include information at both consolidated and solo levels, as appropriate and following the established limit structure, spanning business lines, geographies and legal entities. 55.The frequency of the reporting should reflect the materiality and nature of the risk drivers, especially with regard to their volatility. Ad hoc reports can be used to supplement regular reporting. 56.An institution should have adequate management information systems to enable it to monitor concentrations arising from different (types of) exposures against approved limits. The results of such monitoring of limits (limit utilisation) should be included in management reports and operational reports for users of limits. Institutions should have appropriate escalation procedures to address any limit breaches. Guideline 6. Institutions should ensure that concentration risk is taken into account adequately within their ICAAP and capital planning frameworks. In particular, they should assess, where relevant, the amount of capital which they consider to be adequate to hold given the level of concentration risk in their portfolios.

57. An institution should take concentration risk into account in its assessment of
capital adequacy under ICAAP and be prepared to demonstrate that its internal capital assessment is comprehensive and adequate to the nature of its concentration risk. If an institution is able to demonstrate to its supervisors that concentration risk (both intra- and inter-risk) is adequately captured in the capital planning framework, it might not be necessary and, given the models employed by institutions, not always possible to explicitly allocate capital to concentration risk as a separate risk category within Pillar 2 (show capital estimate attribute to concentration risk as a single line). However, in any event, internal capital estimation should cover all material risks an institution is exposed to, including intra- and inter-risk concentrations. 58.An institution should take into account mitigation in its assessment of its overall exposure to concentration risk. In assessing the mitigation an institution may take into account a range of relevant factors, including the quality of its risk management and other internal systems and controls, and its ability to take effective management action to adjust levels of concentration risk. 59.While the role of capital should be assessed within this broader context, keeping in mind that the weight attached to the different factors will vary from one institution to another, the expectation is that the higher the levels of concentration, the greater the onus will be on institutions to demonstrate how they have assessed the implications in terms of capital.
4. Management and supervision of concentration risk
within individual risk areas
4.1 Credit risk16
60.Institutions should derive a concise and practical definition of what constitutes a credit concentration. The definition should encompass the sub-types of credit concentrations being addressed, including exposures to same counterparties, groups of connected counterparties, and counterparties in the same economic sector, geographic region or from the same activity or commodity, the application of credit risk mitigation techniques, and including 16 See also CEBS Guidelines on the implementation of the revised large exposures regime (see http://www.c-ebs.org/documents/Publications/Standards--- Guidelines/2009/Large-exposures_all/Guidelines-on-Large-exposures_connected-clientsan.aspx). It is noted that no set of uniform rules can capture all aspects of an institution's overall risk profile. The large exposures requirements of the CRD may be a useful starting point, but may not, in themselves, be sufficient for institutions to define their own internal risk management systems for credit concentration risk.

in particular risks associated with large indirect credit exposures (e.g. to a single collateral issuer)17. Guideline 7. Institutions should employ methodologies and tools to systematically identify their overall exposure to credit risk with regard to a particular customer, product, industry or geographic location. 61.The infrastructure used to aggregate and consolidate credit exposures and manage credit risk limits should be sufficiently robust to capture, on an institution-wide basis, the complexity of the credit portfolio from an obligor relationship and subordination perspective. 62.For example, institutions with exposures having the support of guarantees (unconditional, partial or letter of support) or utilising other forms of credit enhancement (such as monoline insurance or CDS protection) can have complex inter-obligor relationships. Such subordination issues can complicate the production of an aggregate credit exposure list, particularly for consolidated group purposes, and can thus compromise the process of identifying credit concentration risk.
63. In addition, credit concentration risks may arise from the structure
underlying complex products, such as securitised products.
64.Also, credit concentration risks may arise in both the banking and trading books (or stem from a combination of the two), with the latter arising in terms of counterparty risk and significant exposure to particular instrument types exposed to the same idiosyncratic risk. 65.Finally, interdependencies between creditors due to shared counterparties, links via supply chains, shared ownership, guarantors, etc., which may go beyond sectoral or geographic links, may only become apparent under stressed circumstances. Hence, stress testing can be a helpful tool for gauging the size of possible hidden concentrations in the credit portfolio. Guideline 8. The models and indicators used by institutions to measure credit concentration risk should adequately capture the nature of the interdependencies between exposures. 66.Model risk can be substantial in the modelling credit concentration risk. A fundamental factor underlying the modelling of borrower interdependencies concerns the type of model. Models may have fundamentally different structures (e.g. reduced form versus structural models) or may be run in different set ups (e.g. in default mode versus mark-to-market mode). Since the choice of model has significant impact on the credit concentration risk 17 See also Annex V of the CRD and CEBS Guidelines on the implementation of the revised large exposures regime (see http://www.cebs.org/documents/Publications/Standards---Guidelines/2009/Largeexposures_all/Guidelines-on-Large-exposures_connected-clients-an.aspx) as far as connected clients are concerned.

assessment of an institution, institutions need to have a full understanding of the underlying assumptions and techniques embedded in their models. 67.Institutions should demonstrate that the model structure chosen fits the characteristics of their portfolios and the dependency structure of their credit exposures. Not all models will capture different types of interdependencies equally well. Failing to include relevant portfolio characteristics may result in underestimation of credit concentration risks. 68.As an example, when modelling interdependencies for retail or SME exposures, where no market data is available, institutions may often rely on data that may not be representative for such exposures. In addition, the assumptions, e.g. concerning the dependency structure among borrowers, may only hold ‘locally’ or may be violated under adverse circumstances. 69.Another area of concern is the extent to which the sample period that is used to calibrate the model is sufficiently reflective of severe economic circumstances and leads to robust estimates. Institutions should demonstrate how an adequate degree of conservatism is included, especially in cases where the time series used for estimation do not cover years of economic downturn. 70.Finally, challenges also arise in the measurement of credit concentration risk from aggregating (different types) of credit exposures to similar counterparties over all the business units of an institution. Exposures could emerge from different activities in different parts of the organisation, for example, loan origination, counterparty credit risk from trading activities, collateral management, and the issuance of credit lines.
4.2 Market risk
71.Market concentration risk can arise either from exposures to a single risk factor or exposures to multiple risk factors that are correlated. It may not always be apparent that multiple risk factors are correlated as this may only be revealed under stressed market conditions. Institutions should identify all material risk factors and understand, in particular through stress testing and sensitivity analysis, how their market risk profiles and the value of their portfolios may be affected by changes in correlations and non-linear effects. In particular, concentrations can arise from exposures in the trading and non-trading books. 72.Many institutions use a VaR model and related limits to monitor the positions that are exposed to market risk. VaR models can use unstressed correlations among risk factors. In stressed conditions however, interdependencies change and the benefits of asset diversification in the trading portfolio may be overestimated. In addition, prices used in models might not be based on true market prices but be the result of valuation techniques based on market observables or non-observable assumptions of limited validity in times of stress, thereby not representing the true concentration risk of an instrument.

Concentration risk can also arise as a result of actions by other market participants. Systemic risk can also be a significant source of concentrations and this can be underestimated by the models. 73.Traditional VaR models may not capture the whole range of market risk concentrations, in particular, those that emerge in stressed conditions. An institution’s VaR measure may not reflect stressed market conditions and as such concentrations will not be identified. In particular, net positions may potentially conceal large gross underlying positions that can give rise to significant concentration risk. Therefore the measures used to monitor concentration risk should have the potential to anticipate and detect the build up of concentrated positions in one or multiple risk factors. Guideline 9. An institution’s assessment of concentration risk should incorporate the potential effects of different liquidity horizons that can also change over time18.
74. Market liquidity risk is the risk that a position cannot easily be unwound or
offset at short notice without significantly influencing the market price because of inadequate market depth or market disruption. 75.An institution should assess its concentration risk assuming different liquidity horizons. Given the impact that liquidity may have on concentration risk, careful assessment of liquidity horizons in normal and stressed market conditions is needed. This should be considered when an institution sets its risk limits.
4.3 Operational risk
76.Operational risk concentration (OPRC) means any single operational risk exposure or group of operational risk exposures with the potential to produce losses large enough to worsen the institution’s overall risk profile so that its financial health or its ability to maintain its core business is threatened. It may not always be apparent that multiple risk factors are correlated as this may only be revealed under stressed market conditions. 77.The concept of OPRC is relatively new and both supervisors’ and institutions’ understanding of it and its similarities with other forms of concentration risk are in the early stages of development. 78.Accordingly, the following guidelines provide only a first set of recommendations on OPRC and are structured to promote dialogue and the exchange of experience between supervisors and institutions19. 18 Please also refer to the discussion on liquidity risk in Section 4.4 19 CEBS plans to revise these guidelines when good practices for identification, assessment and management of OPRC have been identified within the industry.

Guideline 10. Institutions should clearly understand all aspects of OPRC in relation to their business activities. 79.Institutions should identify as part of their operational risk management framework the main sources of OPRC and clearly understand both the realised and potential effects. 80.All sources of OPRC should be considered. Institutions should consider the possibility that the sources are linked to the characteristics of the institution’s activities or organisational structure. 81.For example, institutions with large payments and settlements functions or that are active in high frequency trading or that are dependent on one or few external suppliers/providers for key aspects (e.g. IT platforms/suppliers, outsourcers, insurance undertakings) are potentially exposed to OPRC. 82.Other potential sources of OPRC (for example a business decision to carry out a campaign of “aggressive selling” that later produces losses through refunds to clients), may be more clearly identifiable for their negative consequences and their negative impact on the institution’s overall risk profile. 83.Many high frequency/medium impact (HFMI) loss events and low frequency/high impact (LFHI) loss events could be classified as OPRC events. The frequent repetition of medium impact events can – if they remain unmitigated - jeopardise an institution’s survival in the long run, while events with low probability of occurrence but with high impact may cause the immediate default of an institution. 84.Although not all the HFMI and LFHI loss events are related to OPRC, their proper recognition and treatment is crucial to understanding the operational risk profile within the institution. HFMI and LFHI loss events should be considered as contributing to concentration risk if they have a common cause (e.g. inadequate controls or procedures). 85.Frequently the HFMI and LFHI loss events stem from multiple time losses and multiple effect losses20. Given that such losses usually stimulate organisational responses and mitigation actions for operational risk, all institutions should define appropriate principles and set specific criteria and examples to correctly identify, classify and treat multiple time losses and multiple effect losses within their business and organisational structure. 20 Paragraphs 526 and 527 of the CEBS Guidelines on the implementation, validation and assessment of Advanced Measurement (AMA) and Internal Ratings Based (IRB) Approaches (GL10) define “multiple time losses” and “multiple effect losses” as, respectively, a group of subsequent losses occurring in different periods of time, but relating to the same operational risk event and a group of associated losses affecting different entities or business lines, units, etc., but relating to the same root event. Paragraph 530 states that the associated losses should be aggregated in one cumulative loss before being used by the AMA institutions for capital calculation purposes.

Guideline 11.Institutions should use appropriate tools to assess their exposure to OPRC. 86.All institutions should take into account possible risk concentrations when they evaluate their operational risk exposure. The assessment tools should be proportionate to the size and complexity of the institution as well as to the type of method used for the purpose of calculating the operational risk capital figure. 87.In particular the analysis of patterns of frequency and severity of loss data (internal and/or external) can reveal the major determinants and effects of OPRC. 88.Near misses and also operational risk gains21 on one hand and scenario analysis or similar processes containing expert judgements on the other can give a more forward looking perspective on the exposure to OPRC inherent in the current environment or related to new areas of business, changes in the institution’s structure, or recent management decisions, etc. 89.Operational risk managers and internal control functions, where appropriate, should be involved in the assessment of an institution’s exposure to OPRC. The collection of loss data should also form part of that assessment. 90.Sound internal processes and systems and sufficient human resources are crucial to avoiding unnecessary risk concentrations. However, banking businesses will usually be exposed to some OPRC and therefore an appropriate internal control system is paramount to mitigating those risks. 91.The CRD stipulates that contingency plans and continuity plans should be established by institutions in order to ensure their capacity to operate on a continuous basis and to restrain losses due to serious interruptions of their activities22. These plans are crucial for concentration risk management, especially with regard to events with a low probability of occurrence, but associated with severe losses resulting from business disruptions. 92.OPRC can also be addressed by the use of risk mitigation techniques such as the adoption of insurance programmes to cover losses caused by, for example, fraud, an aggressive selling campaign or the inability of external providers to offer their services. 93.The use of risk mitigation techniques may give rise to other risk types (e.g. credit risk) that may render overall risk reduction less effective (e.g. legal risk or other additional operational risk). This could also be considered as a secondary OPRC. Such a concentration risk may arise if a bank insures its 21 As stated in GL10, paragraphs 524, 525 and 526, and reminded in the CEBS Guidelines on Scope of operational risk and operational risk losses (GL20), footnotes 13 and 14, the terms “near-miss event” and “operational risk gain event” can be used to identify, respectively, an operational risk event that does not lead to a loss and an operational risk event that generates a gain. 22 See annex V of the CRD

risks or concentrated risks at only one insurance company which either does not have sufficient capacity to cover all the different operational risks transferred by the bank or is not able to find eligible co-insurers and reinsurers to pool and share those risks. 94.In using risk mitigation techniques for OPRC, institutions should consider the residual risk which may remain with the institution and whether additional risks, including OPRC itself, associated with risk mitigation tools have been acquired.
4.4 Liquidity risk23
95.Concentration risks may be a major source of liquidity risk as concentrations in both assets and liabilities can lead to liquidity problems. A concentration in assets can disrupt an institution’s ability to generate cash in times of illiquidity or reduced market liquidity24 for certain asset classes. A liability concentration (or funding concentration) exists when the funding structure of the institution makes it vulnerable to a single event or a single factor, such as a significant and sudden withdrawal of funds or inadequate access to new funding. The amount that represents a funding concentration is an amount that, if withdrawn by itself or at the same time as similar or correlated funding sources would require the institution to significantly change its dayto-day funding strategy. 96.In recent years, the increasing use of complex financial instruments and the globalisation of financial markets were accompanied by a shift from depositbased to market-based funding. Due to the increasing dependence on wholesale funding, institutions face higher exposures to market prices and credit volatilities. Furthermore, the extension of interbank market activity brings the risk of contagion effects. 23 This section should be read in conjunction with the CEBS’s technical advice on liquidity risk management (second part), September 2008, http://www.cebs.org/getdoc/bcadd664-d06b-42bb-b6d5- 67c8ff48d11d/20081809CEBS_2008_147_%28Advice-on-liquidity_2nd-par.aspx; Liquidity Identity Card, June 2008, http://www.c-ebs.org/getdoc/9d01b79a-04ea-44e3- 85d2-3f8e7a9d4e20/Liquidity-Identity-Card.aspx; and CEBS Guidelines on liquidity buffers and survival period (see http://www.cebs.org/documents/Publications/Standards---Guidelines/2009/LiquidityBuffers/Guidelines-on-Liquidity-Buffers.aspx) In the implementation of principles contained in this section, national supervisory authorities and institutions should be aware of ongoing discussions regarding the proposals for changes to/in the liquidity regime to be introduced in the CRD IV. CEBS is closely monitoring the regulatory developments, has participated in the public consultation of the proposals for the CRD IV, and will amend, if necessary, the principles put forward here, once the legislative proposals are finalised. 24 See Section 4.2

Guideline 12.In order to be able to identify all major kinds of liquidity risk concentrations, institutions need to have a good understanding of their funding and asset structure and be fully aware of all underlying influencing factors over time. When relevant, depending on its business model, an institution should be aware of the vulnerabilities stemming from its funding and asset structure, e.g. from the proportions of retail and wholesale funding on the liability side or large concentrations of single securities in their liquid assets buffer, that should be avoided. Also, when relevant, the identification of liquidity risk concentrations should include an analysis of geographic specificities. Finally, the identification of concentrations in liquidity risk should take into consideration off-balance sheet commitments. 97.The identification process of liquidity risk concentrations needs to take into consideration both market liquidity risk and funding liquidity risk as well as the possible interaction of the two. Institutions need to manage their stocks of liquid assets to ensure to the maximum extent possible that they will be available in times of stress. Institutions should avoid large concentrations in less liquid asset classes relative to their long-term stable funding. Otherwise in a market downturn this may severely damage the institution's liquidity generation capacity. 98.High concentrations in wholesale funding typically increase liquidity risk as institutional funding providers are more credit-sensitive and susceptible to market rumours about the financial difficulties of institutions than retail funding providers. Inter-bank funding entails contagion-risk and can be a volatile funding source, especially in times of crisis, when confidence among institutions is lost and they become reluctant to lend to each other. When assessing the probability of withdrawal for each concentrated source of funding both behavioural and contractual considerations should to be taken into account. 99.For institutions active in multiple countries and currencies, access to diverse sources of liquidity in each currency in which the institution holds significant positions is required since credit institutions are not always able to swap liquidity easily from one currency to another.
100. There may be legal or regulatory constraints on the free flow of assets
between jurisdictions (e.g. tax issues, regulatory ring-fencing) restricting the ability of groups to allocate assets where they are most needed. Institutions should be able to identify intra-bank (between the head office and the foreign branches) and intra-group (either between the parent company and its subsidiaries or among different subsidiaries) concentrations in liquidity.
101. Another important factor influencing liquidity risk concentration is offbalance sheet items, as appropriate. Off-balance sheet liquidity needs may
arise both from contractual and non-contractual commitments. Off-balance sheet contractual obligations may include such items as commitments to provide financing, guarantees, execution of limits within agreed credit lines, etc. Covenants in securitisation contracts should be screened for clauses - e. g. performance or downgrade triggers - that can impose collateral

requirements or the obligation to provide liquidity support. The necessity to support entities such as SPVs in order to maintain a good reputation, market share or business relations may come unexpectedly, especially in times when an institution already faces stress, and may severely threaten the institution’s liquidity position. Potential liquidity needs relating to the execution of such off-balance sheet commitments should be regularly assessed. Early repayment of debt instruments (instruments callable or with trigger clauses) should also be considered. Guideline 13. In identifying their exposure to funding concentration risk institutions should actively monitor their funding sources. A comprehensive analysis of all factors that could trigger a significant sudden withdrawal of funds or deterioration in institutions’’ access to funding sources (including, for example, in the form of asset encumbrance) should be performed.
102. There are no fixed thresholds or limits that define a funding concentration
which depends on the institution and its balance sheet structure. Amongst other things, funding concentrations can include following examples:
i) Concentrations in one particular market / one particular instrument:

the inter-bank market;
funding through debt issuance (commercial paper, medium-term
notes, hybrid bonds, subordinated bonds, etc.);
other wholesale funding (deposits from institutional investors and
large corporations); and
structured instruments (FX swaps, asset-backed commercial paper,
covered bonds), both due to funding reliance and exposures due to margin and collateral calls. ii) Concentrations in secured funding sources:
securities financing arrangements such as repurchase/reverse
repurchase agreements, stock borrowing/lending and specific assets used in these operations;
asset-backed commercial paper;
securitisation of loans, (credit cards, mortgages, autos, etc.);
certain types covered bonds; and
dependence of open market operations.
iii) Concentrations on a few providers of liquidity stemming from concentrated counterparty credit risk. This dependence on one or a few liquidity providers could even go along with the use of different markets or instruments. Without a specific concentration risk analysis, the concentration on a few providers of

liquidity could be less visible and difficult to identify. These concentrations could stem from:

wholesale market providers (deposits from institutional investors
and large corporations);
funding from the financial group the institution belongs to;
large individual depositors or counterparties;
connected counterparties; and
geographic and currency concentrations of funding sources.
iv) Maturity concentrations, such as over-reliance on short-term funding to finance longer term lending. While acknowledging the fact that maturity transformation is an integral part of banking business, liquidity problems can arise in the event that an institution is unable to roll-over its short-term liabilities. Another type of maturity concentration occurs when similar maturity dates of different funding sources (like debt issuance) require the bank to issue a large number or amount of debt instruments in a short period of time, leading to difficulties in market absorption. Guideline 14.The qualitative assessments of concentrations in liquidity risk should be complemented by quantitative indicators for determining the level of liquidity risk concentration.

One example of such an indicator is the ratio of wholesale funding to total
liabilities. It captures the extent to which an institution relies on – more volatile and vulnerable – market funding sources. In this example, wholesale funding could be defined as the funding provided by deposits from institutional investors and large corporations. Another example is a ratio consisting of the five largest depositors as a percentage of total deposits. Guideline 15.Institutions should take into account liquidity risk concentrations when setting up contingency funding plans.
When setting up the contingency funding plan, an institution may consider
the following:

early warning indicators capturing any increase in the concentration of
liquidity risk and the measures to be taken when a crisis situation/concentration stress strikes; and
any increase in concentration stemming from the implementation of
contingency measures should be carefully monitored and addressed as quickly as possible.

Among the early warnings are those indicators monitoring breaches of
concentration limits, as mentioned above (e. g. per individual issuer, sector, liquid facility, asset quality).

106. Among the strategies to be implemented to address a crisis/stress
situation when one or more early warning indicators on concentration is triggered are those measures aimed at keeping diversification stable.
5. Supervisory review and assessment
107. The review and assessment of institutions exposure to concentration risk
and concentration risk management, including management mitigative actions is a part of the overall assessment of an institutions’ risk and business profile, as well as its compliance with the CRD and other regulatory requirements. Supervisors acknowledge that certain aspects of concentration risk, especially intra-risk concentration, may be embedded in the management of the specific risk areas, and, therefore, will apply flexible approach reflecting the principles of proportionality and relevance to the particular institutions.
108. In particular, if an institution is able to demonstrate to its supervisor the
degree to which existing risk management arrangements, set up for specific risk areas, adequately capture intra-risk concentrations within that particular risk area, supervisors, in their review, should not expect institutions to set up parallel arrangements solely for the purposes of the intra-risk concentration management.
109. In the assessment of the concentration risk of an institution (both in the
context of a cross-border or domestic banking group) supervisors should pay attention to the institution’s business model and strategy, including any strategy, which could result in certain entities being concentrated in certain areas, products or markets as a result of the group-wide strategy. Such cases will be closely examined by the respective supervisors and addressed in the context of ICAAP-SREP dialogue between institutions and their supervisors also taking place in the college framework, where applicable. Guideline 16. Supervisors should assess whether concentration risk is adequately captured in the institution’s risk management framework. The supervisory review should encompass the quantitative, qualitative and organisational aspects of concentration risk management.
110. As part of their assessment supervisors should review the compliance of
institutions with these Guidelines. They should also evaluate the extent to which concentration risk management is embedded in an institution’s risk management framework and whether the institution has considered all possible areas where risk concentrations may arise.
111. Supervisors should consider using quantitative indicators in their Risk
Assessment Systems (RAS) to assess the level of concentration risk within institutions. Supervisors can build up these indicators based on the set of limits, thresholds or similar concepts defined internally by institutions. They may also develop their own models and tools such as indicators based on the existing supervisory reporting from institutions.

112. These indicators should be used within the supervisor’s RAS to carry out
peer comparisons and identify outliers. Supervisors should recognise that simple concentration risk indicators built on the information provided from supervisory reporting have shortcomings (e.g. they might not fully capture the interdependencies between exposures). Therefore, at least for the largest and most complex institutions, these measures are to be regarded as supplementary only and are not expected to cover the risk profile of an institution completely. In any case, these measures are not expected to serve as a replacement for the internal assessment of an institution itself.
113. As regards inter-risk concentrations, supervisors are aware that the
methodological approaches to measure inter-risk concentration in the industry are still under development and anticipate that models which capture a holistic approach will evolve over time. Supervisors recognise that modelling inter-risk concentration is complex and difficult to evaluate in a quantitative manner, and, therefore, in the supervisory review will address the validity of a large array of approaches such as stress tests, scenario analyses backed by qualitative commentaries and modelling, where appropriate.
114. Supervisors should recognise that the assessment and management of
concentration risk does not only rely on quantitative modelling techniques but also on qualitative factors e.g. the expertise of people with regard to the identification and management of risks in individual sectors, markets and financial instruments, and the quality of the risk management, such as expertise and local knowledge, market information, etc. These factors are often relevant for institutions where concentrations are a reflection of their business models and strategies. All relevant information should be considered while conducting the assessment.
115. One of the important aspects of the supervisory review of concentration
risk management is the ongoing dialogue with an institution on all levels, both technical and management. In their reviews, supervisors will consider all sources of information about institutions’ concentration risk management including institutions’ own internal assessments and validation as well as reviews undertaken by internal audit or similar functions. It is important that supervisors also engage in dialogue with the management bodies and senior management of institutions in relation to overall diversification strategies, which may have implications for the level of concentration risk in particular business lines and/or entities.
116. Supervisors should assess the reliability of proposed or implemented riskmitigating actions, including their effectiveness in times of stress or illiquid
markets and the way any potential shortcomings are addressed. Guideline 17.In cases where supervisory assessment reveals material deficiencies, supervisors, if deemed necessary, should take appropriate actions and/or measures set out in the Article 136 of the CRD.

117. These actions might entail requesting an institution to take additional
remedial action such as considering its strategy or future management actions with respect to mitigation of the concentration risk.
118. For example, if the limit structure does not reflect the chosen risk
tolerance and no other mitigation approaches towards concentration risk have been established, the supervisor could in dialogue with the institution ask it to bring its limit structure and mitigation approaches into line with its risk tolerance (i.e. change the limits). Guideline 18.Supervisors should assess whether institutions are adequately capitalised and have appropriate liquidity buffers in relation to their concentration risk profile, focusing on buffers (liquidity and capital) in relation to the unmitigated part of any concentration risk.
119. The supervisor should ensure that the institution holds an adequate
amount of capital and liquidity buffer against its concentration risk. In this regard, special consideration should be given to concentrations which are inherent in the business strategy.
120. While it is recognised that the role of capital needs to be assessed within
the broader context, the overall supervisory expectation is that the higher the levels of concentration, the greater the onus will be on institutions to demonstrate how they have assessed the implications in terms of capital.
121. Should the capital held by an institution not adequately cover the nature
and level of the concentration risks to which it is or might be exposed, the supervisor should take appropriate action aimed at reducing risk exposures, possibly including obliging the institution to hold additional own funds as described under Article 136 of the CRD.
122. Finally, obliging institutions to hold own funds in excess of the minimum
level is one of the measures that can be used by supervisors where institutions do not exhibit to their satisfaction the appropriateness and adequacy of their internal processes for identifying, measuring, monitoring and mitigating concentration risk.
123. Supervisors acknowledge that capital may not be the best way to mitigate
liquidity risk. However, capital may have a role to play in protecting institutions against the possibility of having to liquidate assets from the liquidity buffer at fire-sale prices – a likely scenario in a period of banking sector stress. Supervisors should further be satisfied with the composition of institutions’ liquid asset buffers in accordance to CEBS Guidelines on liquidity buffers and survival periods25. Guideline 19.Supervisors should assess whether concentration risk is adequately captured in firm-wide stress testing programmes. 25 See: http://www.c-ebs.org/documents/Publications/Standards--- Guidelines/2009/Liquidity-Buffers/Guidelines-on-Liquidity-Buffers.aspx

124. Supervisors should assess the extent to which concentration risk is
adequately captured in firm-wide stress testing programmes26. In addition, supervisors may perform or request institutions to perform additional stress tests. Guideline 20.In the case of a cross-border operating institution, appropriate discussions should be held between consolidating and host supervisors to ensure coordination of supervisory activities, and that concentration risk is adequately captured within the institution’s risk management framework. Results of the assessment of the level of concentration risk and concentration risk management should be taken into account in the risk assessment of the institution and discussed in the relevant college of supervisors.
125. Following the principles of the home-host supervisory cooperation
elaborated in the CEBS Guidelines for operational functioning of colleges27, colleges of supervisors play an essential role in the coordination of supervisory activities, including the review of concentration risk management. In the context of the colleges of supervisors, home and host supervisors should assess the concentration risk management in order to ensure that all material concentrations are adequately captured, understood and addressed in the context of the risk management framework at the consolidated and individual entities’ level. The results of the assessment of concentration risk and its management should be taken into account in the risk assessment of the group and its entities.
126. In the assessment of the concentration risk of a cross-border group and its
entities, supervisors should pay attention to the group business model and strategy, including diversification strategy, which could result in certain entities being concentrated in certain areas, products or markets as a result of the group-wide diversification strategy. Such cases should be closely examined and discussed by the colleges of supervisors.
127. The results of such assessments may be taken into account when deciding
on the adequacy of the level of own funds held by the group with respect to its financial situation and risk profile and the required level of own funds for the application of Article 136(2) to each entity within the banking group and on a consolidated basis, as required by the Article 129(3) of the CRD28. 26 More details on stress testing, including concentration risk stress testing is available from the revised CEBS Guidelines on stress testing, see http://www.cebs.org/documents/Publications/Standards---Guidelines/2010/Stress-testingguidelines/ST_Guidelines.aspx. 27 See: http://www.c-ebs.org/documents/Publications/Standards--- Guidelines/2010/Colleges/CollegeGuidelines.aspx 28 CEBS has elaborated on the process of the joint decision on the adequacy of own funds in the draft Guidelines for the joint assessment of the elements covered by the supervisory review and evaluation process and has elaborated on the joint decision regarding the capital adequacy of cross border groups (CP39) , currently being available

Guideline 21.Supervisors in their reviews should pay particular attention to those institutions which are highly concentrated, e. g. by geographical region of operation, customer type and specialised nature of product or funding source (specialised institutions).
128. Generally, supervisors should expect a positive relationship between the
degree of concentration and the level of capital. However, other relevant factors linked to the business model of an institution and quality of risk management, such as expertise and local knowledge, should also be considered. Those factors are often relevant for institutions where concentrations are a reflection of their business models and strategies.
129. In those institutions, focusing on selected products, certain categories of
borrowers or certain geographic regions may generate a specialised expertise (or, conversely, a specialised expertise may lead to focus on specific activities) that may result in portfolios of relatively higher quality despite the degree of concentration.
130. A balanced view has thus to be taken when assessing the focused activity
that may inherently lead to concentrated exposures, generally requiring a higher level of capital, though potentially reflecting a relatively better portfolio quality given the greater local knowledge. In assessing specialised institutions, supervisors should be cautious with respect to the risk mitigation techniques undertaken by the institutions and not encourage an institution to enter a new line of business, customer segment or geographic location to obtain diversification, if the institution might have little experience or capability in such areas. as a consultation paper, see: http://www.cebs.org/documents/Publications/Consultation-papers/2010/CP39/CP39.aspx.

Annex 1. Examples of risk concentration

Examples of inter-risk concentration – description of events of the
sub-prime crisis of 2007-2008
The crisis has clearly shown how inter-risk concentrations may arise within financial institutions as risks and losses steeply increased because of single or interacting risk drivers. The interactions between the risk exposures and the difficulty of measuring and managing risks under these conditions can give rise to the rapid growth of unexpected risk positions and losses. What follows is a short abstract of some of these experiences:
Severe doubts about the credit quality of US sub-prime mortgages coupled with valuation difficulties and uncertainties about the adequacy of credit rating agency ratings led to a severe drop in investor demand. This left originators and structures with the inability to transfer assets to the securitisation markets and unexpectedly concentrated exposures to assets whose values were sensitive to market variables, credit quality and asset liquidity changes. Due to the uncertainties about the underlying quality of the collateral the ABCP markets also seized up. The freezing of the ABCP markets led to some funding difficulties for certain financial institutions, forcing some to draw on their liquidity lines and/or to shorten the maturity of their debt. These concentrated funding exposures to short-term horizons increased the fragility of the liquidity position. Large (sponsoring) institutions were faced with a build-up of exposures to structured credit assets and further pressure on liquidity positions. The increase in risk aversion, the steep rises in some reference interest rates and credit and liquidity hoarding led to forced asset sales and subsequently to severe price decreases in multiple asset classes (equity, traded credit, corporate bonds, etc.). These falls in asset values often provoked additional collateral requirements leading to further deterioration in the liquidity situation of the credit institutions. This general liquidity squeeze, the uncertainties about the institutions’ own contingent exposures and heightened counterparty risk concerns, brought the inter-bank market to a standstill. Hedging the credit and market risks proved extremely hard under these conditions and often less effective than expected, rendering the exposures to those risks much higher (basis risk). Through the losses and downgrading of the monoline insurance companies, the issue of (indirect) counterparty risk suddenly attracted much more attention, again, as hedges proved ineffective. Given the generally declining markets the number of litigation cases rose strongly. In addition institutions faced with, for instance, rogue trades found it much harder to close those positions without incurring severe losses.
Examples of inter-risk concentration
Credit - liquidity risk: failure of material counterparties impairs an institution’s cash flow and its ability to meet commitments. Credit - market risk: where counterparties may be closely related, or the same, or where unsystematic or undiversifiable risk (i.e. the part of the market risk which derives not from general price movements but from specific ones due to,

for example, changes in the perception of the inherent credit risk of an issuer) is considered. Furthermore, the worsening credit quality of an issuer can be the source of inter-risk concentration between market risk and credit risk. This, for example, would be the case where an institution has given a loan or granted a credit facility in addition to investing in the equity of the same company. All these positions will be adversely affected by a deteriorating credit quality. Therefore the different types of risks cannot be measured independently and the risks cannot be seen as uncorrelated. This confirms the necessity for the adequate management of inter-risk concentrations. Credit - operational risk: exposure to credit risk may be related to potential operational risk drivers, or the credit quality of risk mitigants (e.g. insurance purchased) may affect the adequacy of operational risk buffers. Market - liquidity risk: interruptions, increased volatility, rapid changes in value or the drying up of markets for certain instruments may negatively affect the liquidity of a given institution.
3. Market risk concentration and inter-risk concentration based on the
credit quality of the issuer as risk driver The credit quality of an issuer is an example of a single risk driver which affects different types of risks and leads to market risk concentration. Deterioration of an issuer’s creditworthiness has a negative impact on its share price as well as on the prices of its bonds and it influences the prices of corresponding derivatives. The equity trading desk of an institution could have bought equity, the fixed-income desk bonds and the derivatives desk could have sold credit protection on the same issuer. Since the prices of all instruments are dependent on the same risk driver, the correlations between these different instrument types are very high. This risk concentration should be taken into account because otherwise the risk situation would not be reflected correctly.
4. Market risk concentration and inter-risk concentration based on the
risk aversion of market participants
Another cause of a market risk concentration is a change in the risk preference of market participants. Greater uncertainty about the economic outlook could lead to reluctance to buy risky positions. Risk premiums on all risky products will rise and their prices will fall. This increases the correlations between different asset classes. Some markets will possibly even dry up completely because market participants are no longer willing to buy those products. An institution, although holding a diversified portfolio, will suffer losses on all types of instruments. This risk concentration caused by a change in the risk premium and the accompanying change in correlations (“correlation breakdown”) should be included in the risk management of an institution. The rise in the risk premium could also be the source of an inter-risk concentration between market risk and liquidity risk. An institution can generate

less liquidity by selling assets because of the lower prices. It is possible that some assets cannot be sold at acceptable prices if the markets are illiquid as a consequence of market participants’ risk aversion. In addition the issuance of debt or equity is more expensive because the institution has to pay a higher risk premium itself. Here again the connection between different risk types demands appropriate management of risk concentrations.
5. Inter-risk concentration between market risk and credit risk based on
the FX rate29
Lending in foreign currency to domestic borrowers is exposed to both market (FX rate) and credit risk. When the domestic currency depreciates, the value of the loan in the domestic currency increases which (by increasing the cost of instalments) may reduce the ability of borrowers to repay. This effect becomes fairly non-linear at higher depreciation rates.
6. Examples of inter-relationships between liquidity and other risk
factors
The institution’s overall exposure to other risks and their possible influence on the level of liquidity risk should be analysed in conjunction with the institution’s funding profile. Interrelationships between liquidity risk and other risks driven by the same factors can occur especially in times of stressed market conditions. Such dependencies can strengthen the effect of concentrations that exist in liquidity risk. Examples of such interrelationships may comprise:

own-credit – liquidity risk: a deterioration in market prices or a downgrade of
a counterparty could trigger a margin call or lead to the obligation to deliver additional collateral;
reputational – liquidity risk: reputational difficulties may lead to a loss of trust
in the institution on the part of counterparties and as a consequence to a reduction in funds available to the institution as well as to the withdrawal of funds;
reputational – liquidity risk: in order to maintain a good reputation and to
avoid adverse market perceptions, institutions may wish to provide funding support to associated parties, even if not contractually obliged to, which leads to a deterioration in their liquidity position; 29 See also „Towards the integrated measurement and management of market and credit risk: The dangers of compounding versus diversification” by Philipp Hartmann, Myron Kwast, Peter Praet, September 2009, http://www.voxeu.org/index.php?q=node/3953
operational – liquidity risk: interruptions in the payment or settlement
process may result in liquidity problems; and
legal – liquidity risk: potential errors or inaccuracies existing in legal
arrangements may make it impossible to enforce the fulfilment of counterparty contracts to provide financing. It may particularly threaten the liquidity of an institution if shortcomings exist in arrangements regarding contingency financing for times of market stress.

Annex 2. Examples of indicators used for concentration
risk management
The following are examples of simple indicators of concentrations. When used and where applicable, concentration indicators should be based upon a risk sensitive measure (such as internal capital, risk-weighted assets or expected loss) rather than simply upon the size of an exposure:

Commonly related to a relevant numeraire (e.g. size of the balance sheet,
own funds, net profit):
o Size of a certain number of large exposures (e. g. the ten largest exposures), o Size of a fixed number of large connected exposures, o Size of key sectoral/geographical concentrations, o Exposure to a specific financial instrument;
Diversity scores, such as the Herfindahl Hirschmann index (HHI),
Simpson’s equitability Index, Shannon-Wiener index, Pielou’s evenness index, Moody’s Diversity Score, etc;
Concentration curves30
;
Gini coefficients31;
Portfolio correlations; and
Variance/ covariance measures.
30 A concentration curve provides a means of assessing for instance whether a certain risk is more concentrated in some countries/sectors than in others. 31 Gini coefficient can be used to measure any form of uneven distribution. It is a number between 0 and 1, where 0 corresponds with complete risk homogeneity (where every exposure has the same risk) and 1 corresponds with absolute concentration (where one exposure carries all the risks, and the other exposures have zero risks).

Lineage: No known changes

Similar documents from other regulators
