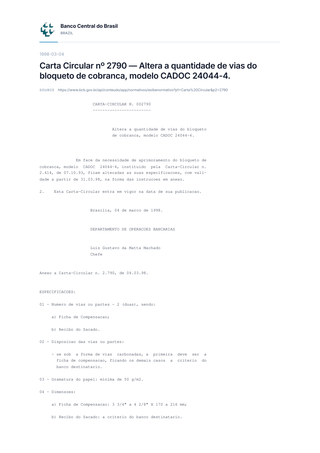

Circular Letter No. 2.790

CIRCULAR LETTER No. 002790 ------------------------ Amends the number of copies of the collection slip, model CADOC 24044-4. In view of the need to improve the collection slip, model CADOC 24044-4, established by Circular Letter No. 2.414, of 07.10.93, its specifications are amended, effective from 31.03.98, in the form of the attached instructions. 2. This Circular Letter enters into force on the date of its publication. Brasilia, 04 March 1998. DEPARTMENT OF BANKING OPERATIONS Luis Gustavo da Matta Machado Head Annex to Circular Letter No. 2.790, of 04.03.98. SPECIFICATIONS: 01 - Number of copies or parts - 2 (two), as follows: a) Clearing Form; b) Drawee's Receipt. 02 - Arrangement of the copies or parts: - if in the form of carbon copies, the first must be the clearing form, with the remaining cases left to the discretion of the receiving bank. 03 - Paper weight: minimum of 50 g/m2. 04 - Dimensions: a) Clearing Form: 3 3/4" to 4 2/8" X 170 to 216 mm; b) Drawee's Receipt: at the discretion of the receiving bank. Note: the forms may contain micro-perforations between the clearing forms and the drawee's receipt. 05 - Color of the copy/printing: a) white background/blue printing; or b) white background/black printing. COMPLETION INSTRUCTIONS 01 - Mandatory fields - location: a) Clearing Form: I - upper left part: the name of the bank, which may contain the logo and, to the right of the bank name, the number-code/DV of the receiving bank's clearing, in bold; Note: in the number-code, character with 5 mm and strokes or lines of 1.2 mm. II - upper right part: there must be a numerical representation of the content of the barcode, with dimensions of 3.5 mm to 4 mm and strokes or lines of 0.3 mm, distributed in 5 (five) fields, as follows, with, for each of the first 3 (three) fields, a check digit (modulo-10) and, between each field, a space equivalent to 2 (two) positions, allowing data entry in the event of rejection by barcode reading: 1. Field - composed of the bank code, currency code, the first five positions of the free field and the check digit of this field; 2. Field - composed of positions 6 to 15 of the free field and the check digit of this field; 3. Field - composed of positions 16 to 25 of the free field and the check digit of this field; 4. Field - check digit of the barcode; and 5. Field - composed of the nominal value of the document, without indication of leading zeros and without editing (no period and no comma). When the value is zero, the representation must be 000 (three zeros). Note 1: edit the first three fields with a period. Note 2: the data of the numerical representation are not presented in the same order as the barcode, but rather in accordance with the sequence described above. Note 3: the check digits referring to the 1st, 2nd and 3rd fields are not represented in the barcode. III - printing frame: - presents grid/field names according to the attached model; - the size of each field (number of positions) may vary,
provided that the same layout of the model and the minimum dimensions of the form are observed; - unused fields may be left without indication; - if the "PORTFOLIO" field is not used, it may be incorporated into the "BANK USE" field. IV - in the lower part, below the printing frame: - at the right end: field intended for authentication; - at the left end: field intended for mandatory indication of the barcode, which must be of the "2 of 5 interleaved" type; Note 1: "2 of 5" means that 5 bars define 1 character, two of which are wide bars. Note 2: "interleaved" means that the spaces between bars also have meaning, analogously to the bars. Note 3: the following distances must be observed: - 12 mm from the lower margin of the form to the center of the barcode; - 5 mm from the left side of the form to the start of the barcode (quiet zone). Note 4: the length of the barcode is 103 mm. Note 5: the height of the barcode is 13 mm. - below the barcode, identification of the form (Clearing Form), with a maximum dimension of 2 mm and strokes with lines of 0.3 mm; and - without prejudice to the indication on the front, the barcode may also be indicated in the upper right part of the back of the Clearing Form. V - the barcode layout must have the following characteristics: Position Size Picture Content 01-03 3 9 (3) Bank identification 04-04 1 9 Currency code (1-cruzeiro, 5-cruzeiro real, 9-real) 05-05 1 9 Barcode check digit 06-19 14 9 (12) V99 Value 20-44 25 9 (25) FREE FIELD Note 1: the calculation of the barcode check digit, in position "5", is modulo "11", from 2 to 9, using digit 1 (one) for remainders 0, 10 or 1 (zero, ten or one). Note 2: for the calculation, consider positions 1 to 4 and 6 to 44, starting from the 44th position and skipping the 5th position. b) Drawee's Receipt: at the discretion of each bank.
